What is Quad View in Blender & How to Use It?

Think of Blender’s Quad View like having four different windows into your 3D view, all open at the same time. Instead of constantly flipping between views, you get to see your creation from the top, front, side, and any angle you want, all right there in front of you.

This is super helpful when you’re trying to be precise. Think of it this way, you’re carefully adding small details to a model, or fine-tuning the way a character moves. With Quad View, you can see exactly what you’re doing from multiple angles, making sure everything lines up perfectly.

This article will explain what Quad View is, how to use it, and why it’s a valuable tool for Blender users.

What Is Quad View?

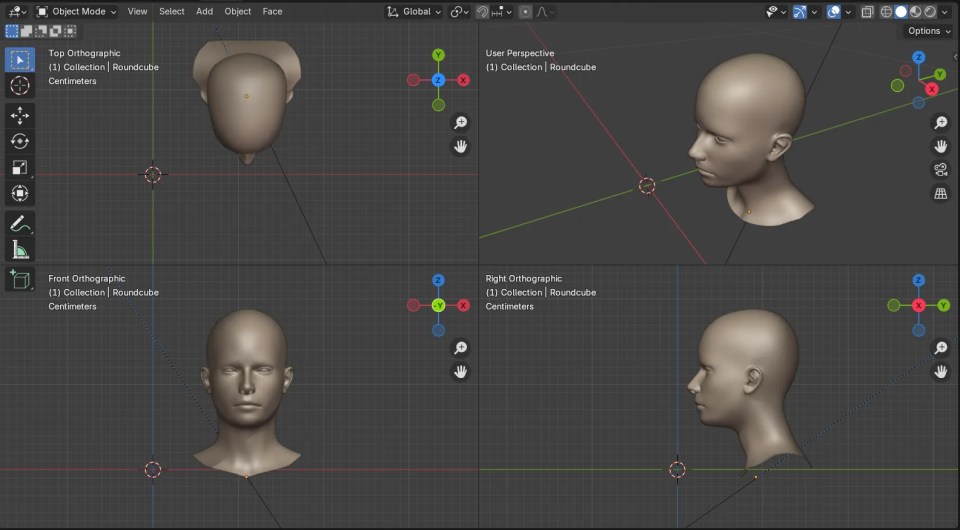

In Blender, “Quad View” is a layout mode in Blender that allows users to divide their workspace into four separate views, each displaying the 3D scene from a different perspective.

Quad View in Blender provides:

• Three Locked Orthographic Views: Top, Front, and Right (or Side) views. You’ll find that these views are fixed in place. You can’t rotate them into a perspective view. This might seem limiting at first, but it actually ensures you always have a reliable reference from those standard angles.
• One Unlocked Perspective View: This quadrant can be freely manipulated, allowing you to zoom, pan, or rotate your view to inspect or work on your model from any angle.

The fixed size of each quadrant ensures an equal division of the viewport space, creating a balanced perspective.

How to Activate and Use Quad View

Activating Quad View is straightforward:

1. Keyboard Shortcut: Press Ctrl + Alt + Q to toggle Quad View on and off. This is the quickest way to switch to this mode from any viewport configuration.
2. Menu Navigation: Navigate to the top menu of the 3D Viewport, select “View”, then “Area”, and finally click on “Toggle Quad View”.

Once active, your screen transforms into a multi-view hub, ready to tackle any task.

Practical Uses of Quad View

Here’s how Quad View shines across different workflows:

• Modeling: Use the orthographic views to align vertices or edges accurately along axes, ensuring symmetry or alignment. For example, when modeling a character, ensure limbs match up perfectly by cross-checking Front and Side views.
• Sculpting: 3D Sculptors can benefit from Quad View to maintain consistency across different angles. It’s particularly useful when sculpting detailed areas where symmetry or symmetry-breaking needs careful management.

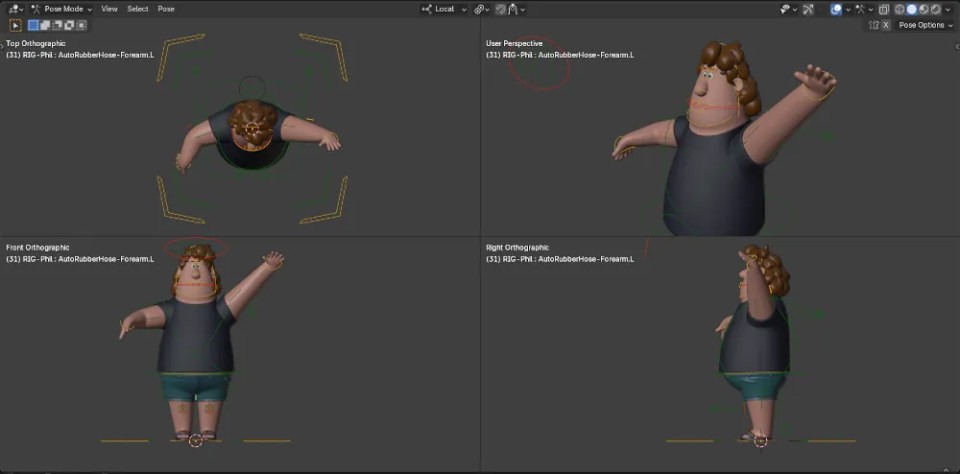

• Animation: Verify poses and movements from multiple perspectives simultaneously, ensuring natural flow without guesswork.

Customizing Quad View

While the views are locked by default, you can customize Quad View to some extent:

• Unlocking Views: By accessing the Properties Panel (press N to open), you can find options under the “View” tab to unlock rotation for each quadrant. This allows you to change one of the orthographic views to a perspective view temporarily if needed.
• Switching Views: Hover your mouse over the viewport you want to change, then use numpad keys or mouse shortcuts to switch views (like Numpad 9 for reversing the view).

Keep in mind that Quad View doesn’t save these changes. It reverts to its default configuration every time you toggle it off and on.

Pro Tip: Maximize Your Workspace

When using quad view mode to monitor four cameras at once, the screen can feel cluttered with menus and buttons. This makes it harder to see what’s happening on each view.

To maximize your viewing area, use the Ctrl + Alt + Space shortcut. This hides all the interface elements and expands the quad view to fill the entire screen.

Need to adjust settings or use the menus? Just press Ctrl + Alt + Space again to return to the standard view. This allows you to easily switch between full-screen mode for focused viewing and the standard interface for controlling the system.

A Hidden Gem: Syncing Views

For advanced users, try syncing Quad View quadrants to a specific object or cursor. In the View menu, select “Lock to Object” or “Lock to Cursor.” This keeps all views centered on your focus point—ideal for rigging or fine-tuning a complex mesh.

Conclusion

Quad View in Blender isn’t just a layout, it’s a workflow booster. By offering multiple perspectives at once, it reduces the need to switch views constantly, thereby enhancing the workflow, especially in modeling and animation tasks. Whether you’re sculpting, animating, or just designing, mastering Quad View can significantly elevate your work in Blender.
